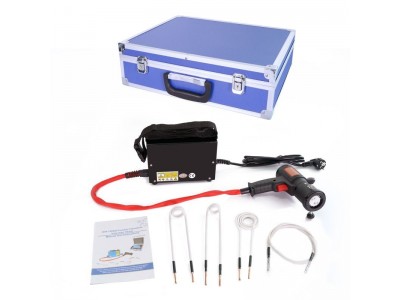

DIH-1500W Portable Flameless Induction Heater
The DIH-1.5KW Induction Heater is designed for quick, efficient and safe heating of metallic parts.Can work with any power source with single phase 110V, 220V or 240V, simple operation and very convenient.
DW-1.5KW感應加熱器是為金屬部件快速、安全加熱而設計。只要連接到了單相110V,220V或者240 V的電源即可工作，操作簡單，方便。
主要描述和特點
Main Deions and Advantages
Max output 1.5KW, heating steel material more than 800°C temperature within seconds and no need water cooling, and lower consumable cost, with the less weight, easy handling and small carrying handle, one better kind of portable induction heater, no flame, compare to naked fire or LGP flame heating way in the auto repairing workshop, a better way to heat the metallic material, such as bolts, nuts, screws, gears, rod, cases, bearings, driving shafts, pipes, hubs etc.
大輸出功率1.5KW，很短時間可以將金屬材料加熱超過800°C，無需水冷卻，且用電成本更低，重量更輕，方便操作，便攜式加熱手柄，這樣一種無火焰，便攜式感應加熱器，相比傳統汽車修理廠的明火加熱或LGP火焰加熱，是一種較好的金屬材料加熱方式。
主要應用范圍
Main Application
Manufacture, repair renovation, maintenance,and so on.
Heating of tools and parts before hardening, gluing, soldering.
Also theworkpieces and parts that require heating, such as bolts, rod and profile steel, metallic sheets, bearings, cases, driving shafts, suspensions, nuts, pipes, gears, gear, spring base, shafts, machine and vehicle parts and components, exhausts, pulley boxes, bushings etc.
應用領域包括制造，維修與維護等。
在硬化，膠合，錫焊之前對工具和零件進行加熱。
各種需要加熱的零件，有螺栓，桿和型鋼，金屬薄板，軸承，殼體，驅動軸，懸架，螺母，管道，齒輪，彈簧座，軸，機械及汽車零部件，排氣口，滑輪箱，襯套等
主要技術參數
Main Technical Parameter
|
型號Model No. |
DIH-1500W |
|
|
輸入電源Input Power Supply |
AC 110V,220V,240V,50/60Hz |
|
|
輸出感應頻率Output Induction Frequency |
25-65kHz |
|
|
≤1.5kW |
|
|
功率因數 Power Factor |
0.99(PFC) |
|
|
冷卻方式Cooling Way |
Air Cooling風冷 |
|
|
持續加熱時間 Continuous and Constant Heating Time |
6Minutes / 6分鐘 |
|
|
插座電纜線長度Plug Cable Length |
150CM /厘米 |
|
|
輸出感應電纜長度 Output Induction Cable Length |
80CM /厘米 |
|
|
感應線圈直徑和數量 Induction Coils Diameter & Quantity |
4PCS Different Diameter (1pc flexible cable coil and 4pcs fixed diameter ??coils) |
|
|
插頭類型Plug Type |
Type H,Type B,Type G,Type E |
|
|
感應加熱主機部分 Induction Main Part |
凈重Net Weight |
2.7KG |
|
尺寸Dimension |
21*9*14CM |
|
|
感應加熱分機部分 Induction Heads Part |
凈重Net Weight |
0.5KG |
|
尺寸Dimension |
19*17*6.5CM |
|
|
包裝總重Total Packing Weight |
4.6KG |
|
|
包裝總尺寸Total Packing Size |
41*32*12CM |
|
